Midway Electronics

ME Series QRP Transceivers
ME40+ ME30+ ME20+ ME80+
Please note new mailing address at bottom

Updated March 2023

Important message: Due to circumstances beyond our control, primarily the COVID issue, Ebay/Paypal prices and policy changes, and the stagnant economy, we are having to adjust our pricing as of Oct 30, 2021. We have tried our best to keep the price almost the same as it was back in 2001 when the first kit was introduced. Our profit margin was less than $10 for each kit sold. The labor of kitting each product actually meant we'd loose money for each kit sold. Recently all the parts prices have sharply risen. Just the aluminum enclosure has doubled in price! There is no other way to "cheapen" the price without suffering quality. Therefore the cost of the complete kit is US$129.95 and the board kit is now US$79.95. USPS 2nd and 3rd day shipping has risen to $9.30 and rising. Let us hope we can hold the prices and the economy stabilizes.

The kits are currently available on Ebay. Do an ebay search for ME40+ or ME30+ or ME20+
Complete kits and all parts can also be purchased directly from Midway below.


See Small Wonder offer at the bottom of Warranty.

These kits are exact copies of the legendary SW40+, SW30+, SW20+, and SW80+ kits that were provided by Dave Benson of Small Wonder Labs. Dave has graciously allowed us to carry on his legacy by making this kit available at almost the same price, over 20 years ago. Midway has been selling these kits throughout the U.S. and all over the world. Germany, Spain, New Zealand, Japan, Australia, Brazil, Argentina, Netherlands, Canada, France, England and South Korea, just to name a few.

Why should you consider purchasing and using the ME series QRP rigs when there are so many other modern ones with a lot more features? The ME series rigs are simple, thru hole boards with easy to find parts. There is no microprocessor or surface mount parts that are hard to find and replace. The sensitivity is unsurpassed. The circuitry is simple to understand. You can add many mods to it such as frequency display, RIT, keyer, 10 turn tuning, speaker amp, zero beat indicator, PWR/SWR meter, antenna tuner, etc. The low receiver current drain is excellent for solar operation, emergency communications, and portable use.

See full Specifications here

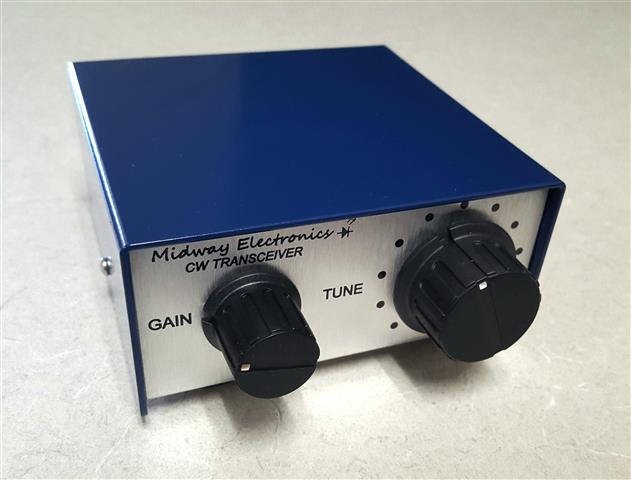

If you purchase the "Complete kit", you will receive all the parts, enclosure, connectors, and wire as shown in the three pictures below.


This section is to provide information, documentation, and supplements to the ME series QRP rigs.

Latest ME40+ assembly manual in PDF

Latest ME80+ assembly manual in PDF

Latest ME30+ assembly manual in PDF

Latest ME20+ assembly manual in PDF

HELP! I can't tune in the right frequencies

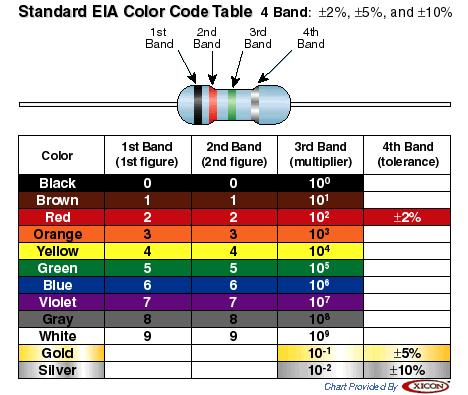

EIA resistor color code

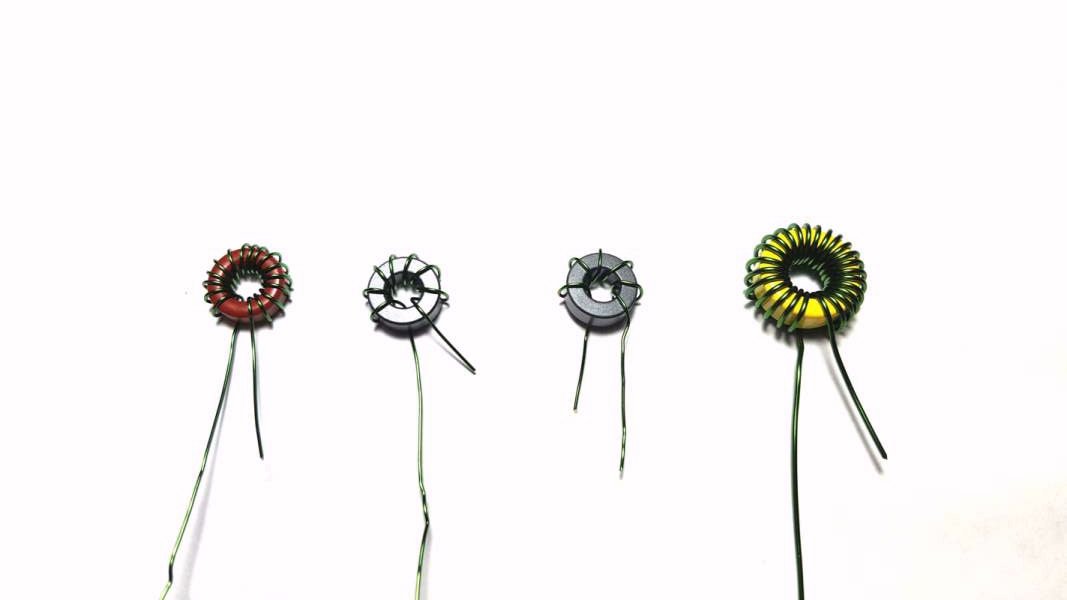

Picture of ME40+ wound toroids

Component identification explanation

Construction Notes

Channeling the Radio

Addendums - Please read!

Compliance Fix

Specifications

F.A.Q.

External Frequency Display

Substitutions

20 meter transformer mod

3 circuit jack differences

Hard to find parts

Modifications - Submit your pictures, ideas, and mods you wish to share

Mod For Wider Frequency Spans

Feedback - email us your feedback both good and bad. We will post it here. We want to hear from all owners. We will strive to make this kit even better or post your mods.

Links to the ME+ Series or SW40+ QRP radios and accessories. Many good hot links!

Circuit board release V1.0 as of Feb 5, 2018

What's new in board version 1.1 released August 2018

Neatcircuits.com is the mother site of Midway Electronics whose creator is behind Midway ME series QRP rigs. Here you will find many technical and non technical pages you may find interesting.


Direct Sales

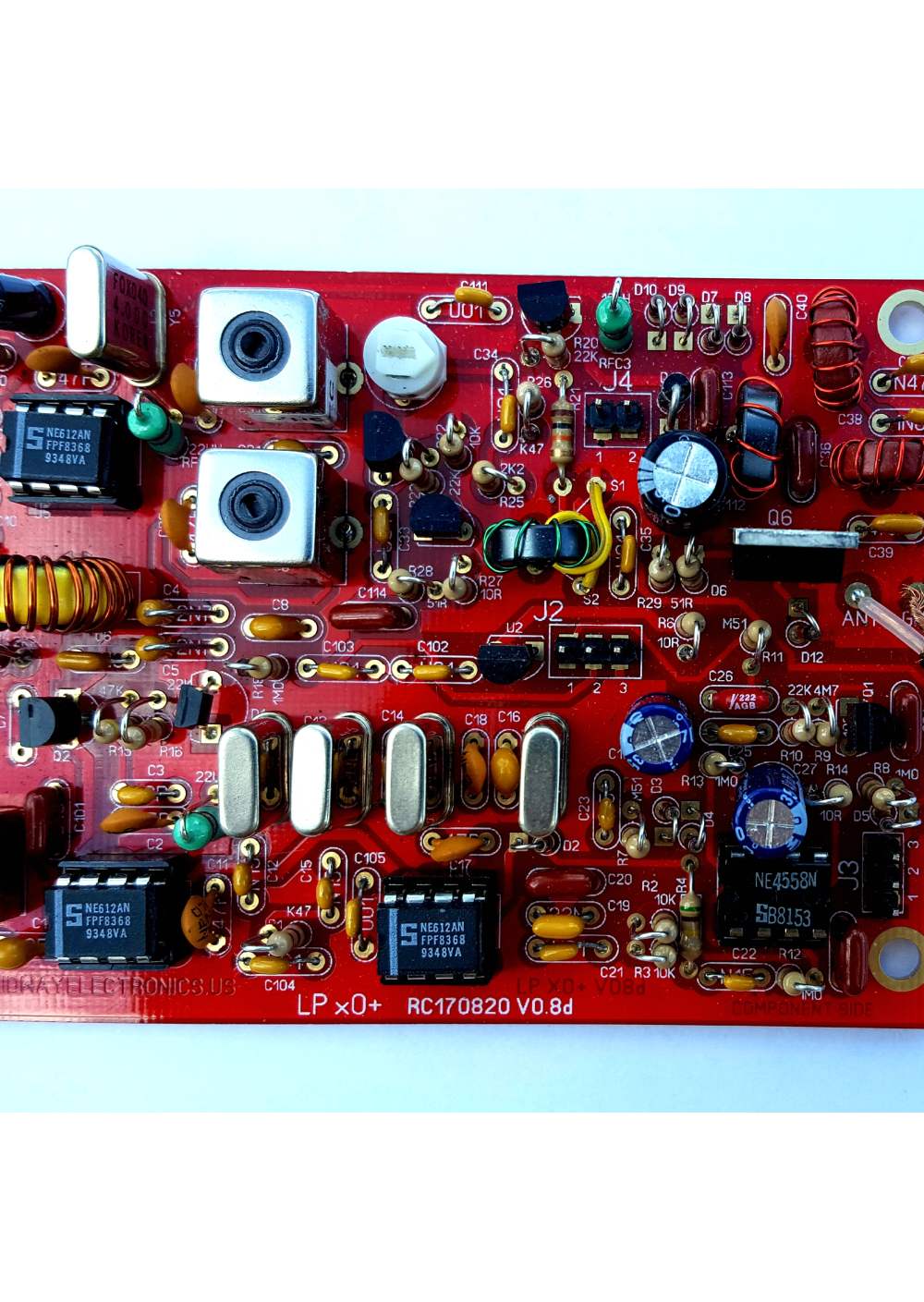

Picture of assembled board (click on board to view a high resolution image to compare to your board)

The ME+ Series "board kit only" comes with circuit board, bags of parts and assembly manual for $79.00 plus shipping, Paypal preferred. The "board kit only" DOES NOT include the enclosure. You must provide a suitable custom enclosure, front panel pots and knobs, and rear panel connectors or order them from below.

The "complete kit" includes everything including enclosure, as shown on the three pictures at top of page.

Foreign orders will have appropriate shipping and customs charges added, but recently rising. For foreign orders it's quicker but not cheaper to use ebay and tracking is better. Please specify which band you desire.

Item

Price
"Complete kit" with enclosure. Everything but solder. (specify band 80,40,30,20) $129.95
"Board kit only", all board parts and circuitboard, no enclosure, no pots or connectors (specify band) $79.95
Bare circuitboard only $10.95
5 prewound toroids (specify band) $10.95
5 toroids and band specific wire (specify band) $6.95
*Rear panel parts (jacks and connectors) $9.95
*Front panel parts (knobs and pots) $10.95
*Enclosure only $33.95
Complete enclosure and all above * items, including rubber feet and standoffs $49.95
3 SA602 or SA612 pre-tested mixer $7.95
2SC2078 pre-tested RF output transistor $3.95
5 matched crystals (specify band) $6.95
3 42IF123 transformers $11.85
1SV149 varicap diode $1.95
Large and small legacy knobs $3.95
2SC2166 pre-tested RF output transistor $3.95

Details on hard to find parts are listed here: Hard to find parts

Please contact Midway Electronics by email for orders. Mailing address at bottom of page.

Occasionally we have fully assembled units available. Please contact us directly via email and we will let you know what's available if any.

Shipping will be USPS Priority 2-3 Days within the U.S. Foreign orders vary depending on country.

All prices subject to change. Shipping prices for U.S. orders only. US Priority mail is currently $9.50, but this seems to go up every few months.

Ordering and contact information: email: midway7726 (at) gmail.com
This email is also used for Paypal

No B.S. Warranty

If you feel this project is beyond your scope you can return it for a full refund.

If you started assembling this board and you feel you are incapable of finishing it you can return all parts, as is for a full refund.

If you build this radio and you cannot get it to perform to specifications you can return it for repair. If we find it is a component fault there will be no charge and we will return it to you fully functioning as to specifications, postage paid.

If we find there was a component or components put in wrong, backwards, or damaged by you or if there was improper assembling or soldering techniques or poor soldering, or shorts, depending on condition there "might" be a repair charge (depending upon issue) plus $9.50 shipping in the U.S.

If you are just unsatisfied and wish to return kit as is, in good condition, we will refund the total cost paid by you less shipping.

We want only satisfied customers!


If you own a Small Wonder Labs SW40+, SW30+, SW80+, or SW20+ and have problems troubleshooting it, or need it set up for a different frequency span, or are missing parts, we will be happy to supply or repair your SW unit for a nominal fee. Please contact Midway for details.




Midway has been trying its best to keep the price of this kit to pre-Year2000 levels. This has been hard on our profit margin. Increasing costs for components, increasing Ebay fees, increasing Paypal expenses, and new Paypal policies have dug even deeper into our profits which is very little. As of this date we can honestly say we have never charged for replacements for defective or damaged components including shipping. As our policy states, "We only want satisfied customers".

Mailing address:

Midway Electronics

7714 Main St.

Middletown, VA 22645
